Aipu Coaxial Cable Tvvbg Cat. 5 ect. 6 Sfutp + 2X0.75 Flat of Elevator Cable Ntau Lub Hom Phiaj Cable
Kev piav qhia
> ca elevator cable yog dav siv rau ntau lub hom phiaj. Nws yog
muaj xws li Cat.5e / Cat.6 multi-stranded 4-pair SF / UTP cable thiab 2
multi-stranded galvanized hlau hlau.
Kev piav qhia
> ca elevator cable yog dav siv rau ntau lub hom phiaj. Nws yog
muaj xws li Cat.5e / Cat.6 multi-stranded 4-pair SF / UTP cable thiab 2
multi-stranded galvanized hlau hlau.
Txuj
GB/T 5023.6-2006
IEC 60227-6: 2011

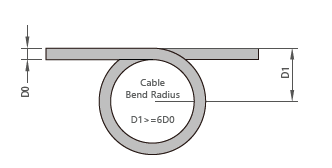

Installation Khoov Radius:
> 6 x diam
Mechanical yam ntxwv:
Max Ua Haujlwm Qhov siab: 150M;
Max Free Suspension Ntev: 80M
Max Taug Kev Ceev: 6.3M / S;
Max Traveling Acceleration: 1.2M / S2
Specification
Cov ntaub ntawv Parameter
Conductor Txoj kab uas hla 7/0.18mm
Zuag qhia tag nrho Dimension: 15.1 ± 0.5mm * 8.0 ± 0.4mm
Outer Sheath tsim nyog rau of elevator cable
Hlau Hlau Khoom Multi-stranded galvanized steel hlau
Tus neeg xyuas pib tsis kam ≤ 9.5Ω / 100m
DC Resistance Unbalance ≤ 2.5%
Dieletric, DC, 1min 1Kv / 1min
Peev Xwm Max. ≤ 5.6nF / 100m
Cov ntaub ntawv xaj
Qauv No. Length Unit
TVVBG Cat.5e SF/UTP Flat Of Elevator Cable Ib qhov kev thov Meter
TVVBG Cat.6 SF/UTP Flat Of Elevator Cable Per Request Meter
